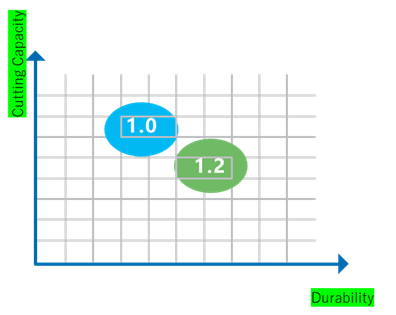

Featuring ceramic material for the best cutting performance! Available in two thicknesses. Outer Diameter: 105mm Other sizes are planned to be expanded gradually! For information on other sizes, please contact Sun Ken representative.
Φ105×1.0×15
Φ105×1.2×15
Applicable Material
General Steel
Carbon Steel
Stainless Steel
Applications

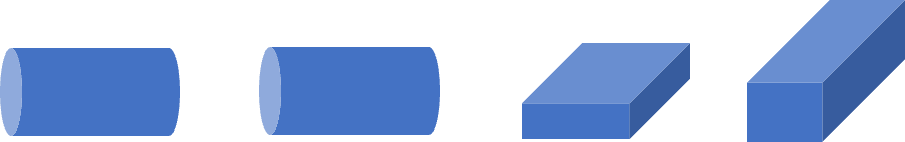

Pipes, round steel, flat steel, square steel, and more.
スクロールできます
Model
Diameter (mm)
Thickness (mm)
Bore Diameter (mm)
Material
Grit
Hardness
Max Free Speed (min-1)
Per Box
HC105-1.0 A 46 T SG-INOX/15.0
105
1.0
15
A
46
T
14,560
10
HC105-1.2 A 46 T SG-INOX/15.0
105
1.2
15
A
46
T
14,560
10
Caution
Use a grinder with a cover.
Do not exceed the maximum rotation speed.
Use within 5 years of the manufacturing date.
Ensure hands and body are not in contact during use.
Be cautious of flammable materials, as sparks may be generated during use.
Check for chipping, cracks, or breakage in the grinding wheel.
Wear appropriate clothing such as long sleeves, protective gear, and dust gloves during operation.
Perform a 1-minute trial run before starting use and a 3-minute trial run when changing the grinding wheel.
Store in a location away from outdoor conditions and minimize temperature fluctuations (especially avoid high temperature and humidity).
